Executive Carbon Steel products consist of high quality solid wires, metal cored and flux cored wires with all heats fully traceable with actual chemistries available on certified material test reports.
The executive line of carbon steel.
Download
Product Catalog

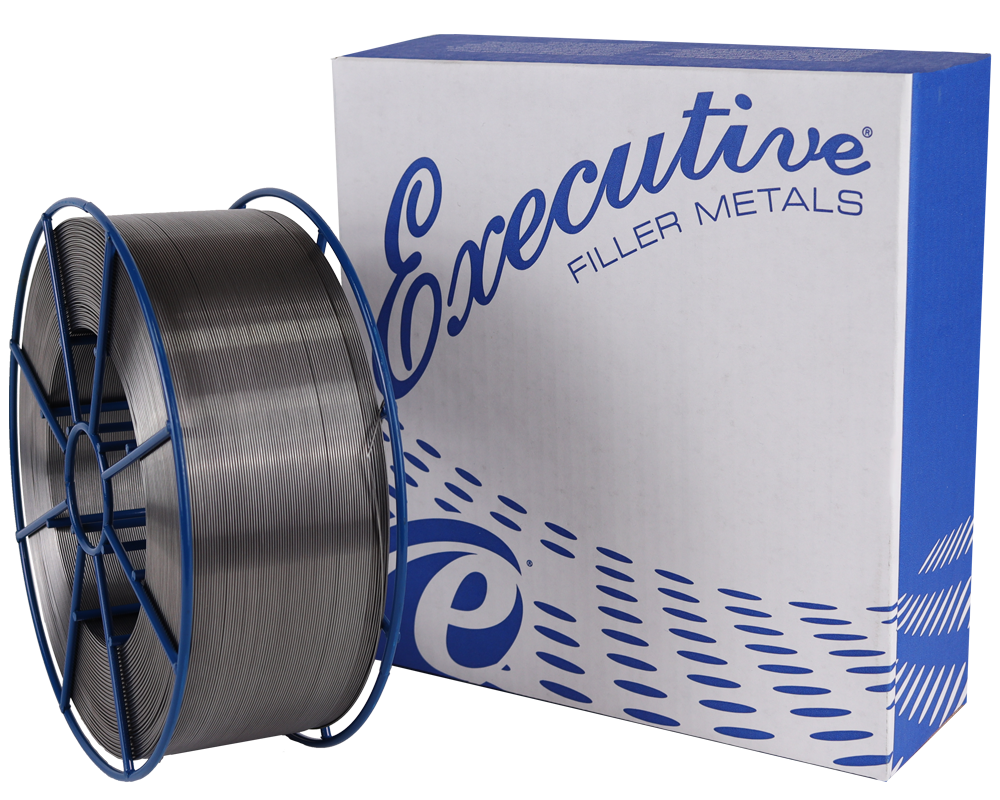

Executive 70S-6 CF (Copper Free) is the latest generation of carbon steel wire designed to increase total productivity while reducing your total welding costs. Executive Copper Free wire is specially designed to reduce wear on consumables and produce great clean welds that require minimal clean-up. This is all to help improve arc on time to keep you welding. Executive 70S-6 CF leads the industry with immensely low spatter, incredibly little fume, and superior arc stability all culminating in excellent weldability. Each heat of Executive 70S-6 CF is certified to the current ASME standard and unique within the industry AS WELDED mechanical properties are provided as standard practice.
Application and Features
Exocor’s proprietary coating on the wire eliminates copper contamination of your feeding equipment and significantly prolongs the life of your contact tips, nozzles, gas diffusers, liners, and feed rolls. Exceptionally low fume emission creates a cleaner and healthier work environment.
This wire is also suitable for laser welding and WAAM applications (Wire Arc Additive Manufacturing, aka Metal 3D printing).
Typical Wire Chemistry and Mechanicals
| C | Si | Mn | P | S |
|---|---|---|---|---|
| 0.06 | 0.85 | 1.50 | 0.01 | 0.01 |
| Tensile Strength: | 83,000 PSI min | Yield Strength: | 77,000 PSI min | Elongations: | 27% |
| Charpy V-Notch: | 90 J (66 ft/lb) at -29°C / (-20°F) | ||||
| 80 J (59 ft/lb) at -50°C / (-58°F) |
Typical Welding Parameters
| Process | Diameter | Voltage | Amperage | Speed (in/min) | Shielding Gas |
|---|---|---|---|---|---|
| GMAW - Short | .035" | 18 | 80 | 100 | |
| 19 | 120 | 150 | |||
| 22 | 175 | 250 | Ar / CO2 Blends | ||
| .045" | 19 | 145 | 125 | Ar / O2 Blends | |
| 20 | 165 | 150 | 100% CO2 | ||
| 21 | 200 | 200 | |||
| GMAW - Spray | .035" | 23 | 195 | 375 | |
| 29 | 230 | 500 | |||
| 30 | 275 | 600 | Ar / CO2 Blends | ||
| .045" | 27 | 285 | 350 | Ar / O2 Blends | |
| 30 | 335 | 475 | |||
| 30 | 340 | 500 |
Standard Packaging
| GMAW (MIG) | 44-lb wire baskets | 2,640-lb pallet |
| 550-lb Drums | 2,200-lb pallet |
Classification
AWS/SFA 5.18, Class ER70S-6 and CWB B-G 49A 3 C1 S6
