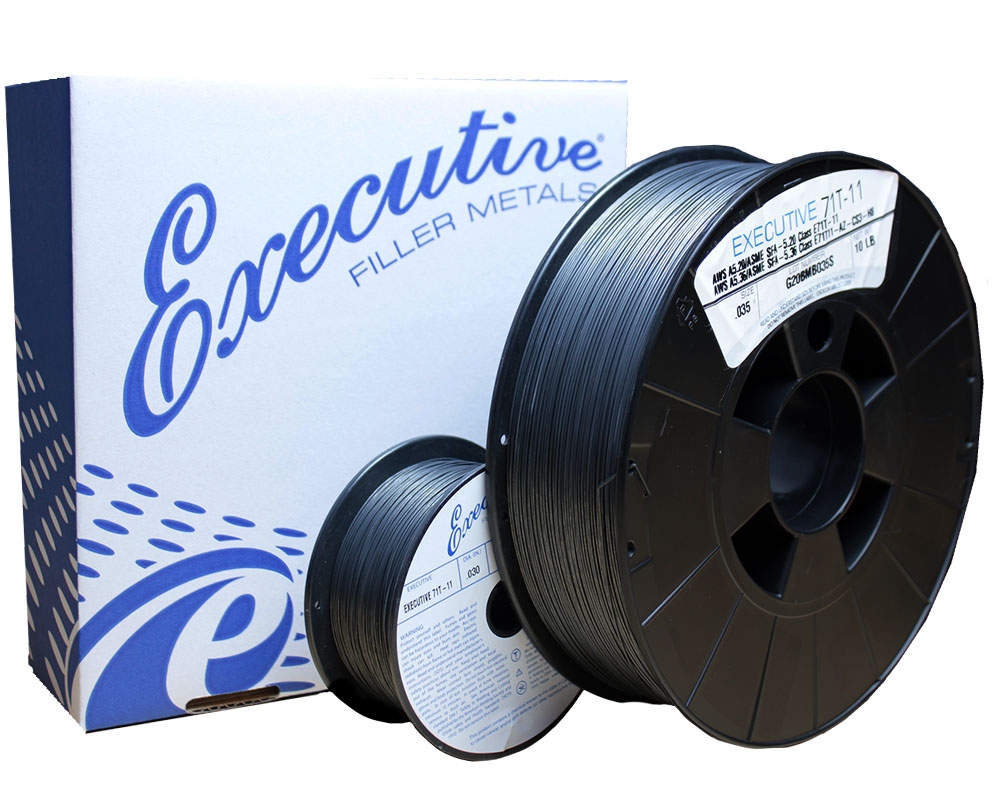

Executive 71T-11 is a self-shielding flux cored wire designed for single and limited multi-pass applications. It is intended for semiautomatic and automatic welding of carbon steel. This all position wire can be used in the field where shielding gases are not available or practical. The portability and increased deposition of this semi-automatic wire can increase productivity. As part of the Executive family of welding wires, the arc transfer is quite smooth and produces very little spatter. The soft arc minimizes burn through on thin materials and in instances of poor fit up. As with most self-shielding wires, Executive 71T-11 is designed to operate on straight polarity only (DCEN).
Application and Features
This wire is an excellent choice for maintenance and repair welding as well as light assembly applications. EXECUTIVE 71T-11 is commonly used on steels from 16 gauge to ½" thick where charpy v-notch toughness is not of prime concern. Additional features of this wire include excellent operator appeal and great bead appearance. Easy to remove slag ensures quick and easy cleanup.
Typical Wire Chemistry and Mechanicals
C | Mn | Si | P | S | Al |
---|---|---|---|---|---|
0.28 | 0.34 | 0.15 | 0.008 | 0.003 | 1.72 |
Tensile Strength: | 90,500 PSI min | Elongation: | 22% | Diffusibile Hydrogen: | H8 |
Yield Strength: | 62,000 PSI min |
Typical Welding Parameters
Diameter | Voltage | Amperage | Wire Feed Speed (in/min) | Stick-Out | Position |
---|---|---|---|---|---|
.030" | 14 | 30 | 55 | ½" | All Position |
18 | 135 | 250 | |||
.035" | 15 | 60 | 75 | ½"-5/8" | All Position |
18 | 115 | 110 | |||
20 | 150 | 200 | |||
.045" | 16 | 120 | 70 | ½"-5/8" | All Position |
17 | 160 | 110 | |||
19 | 175 | 135 |
Standard Packaging
Spools | 2-lb plastic spools |
10-lb plastic spools |
Classification
AWS A5.20/ASME SFA A5.20 Class E71T-11
